F-16 Ventral Fins and Fuel Access Covers

6092/SiC/17.5p-T6 sheet extends the life of the F-16 Fighting Falcon, where it is used as the skins for the ventral fins and fuel access covers.

The 40% higher elastic modulus of DWA’s Al MMC over conventional AA2024 improves ventral fin dynamic response, lowering peak defections during demanding flight maneuvers. The result is a significant, greater than 4X, service life extension of the ventral fin.

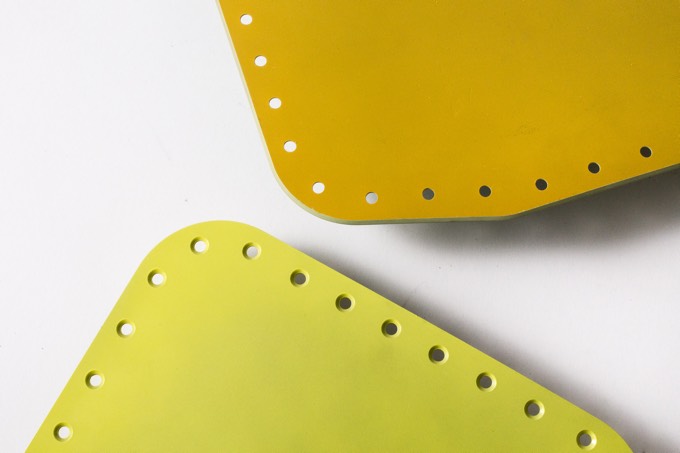

The high stiffness-to-weight of 6092/SiC/17.5p-T6 Al MMC yields fuel access covers that reduce peak stresses in the F-16 mid-fuselage upper skin by as much as 38%, contributing to another significant aircraft service life extension.

LEARN MORE ABOUT 6092/SiC/17.5p Al MMC

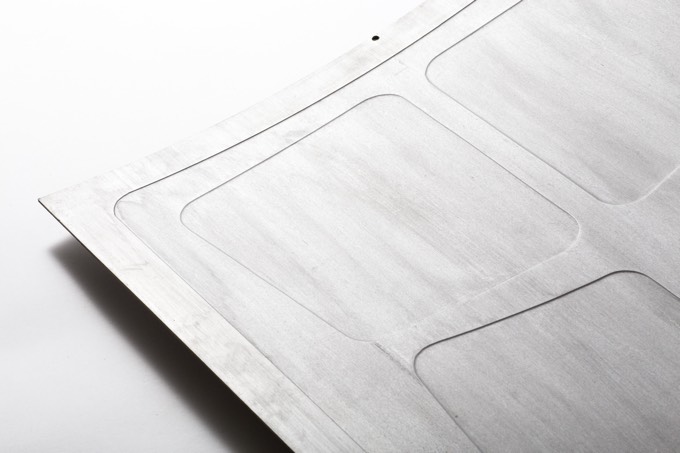

Al MMC Sheet
All MMC Sheet

Applications such as ventral fins and fuel access covers are excellent examples of how efficient Al MMCs are in stiffness critical applications. This is further demonstrated by a Northrop Grumman trade study using a “weight ratio methodology” for 6092/SiC/25p-T6 Al MMC applied to buckling and crippling critical designs.

Estimated Minimum Weight Savings for 6092/SiC/25p-T6 Compared to Conventional Metallics



Al MMC Weight Savings Chart
Case Studies

Fielded Applications

DWA-USA specializes in new aluminum-based powder metallurgy materials and applications development. We serve our customers throughout the entire development cycle, whether it be an upgrade to an existing design or starting from the ground up. Our track record for transitioning prototyping efforts to real world serial production is unparalleled.

View our Case Studies

Density Adjusted Properties of Aluminum MMCs Compared to Steel, Titanium and Aluminum

density-adjusted-properties-of-aluminum-mmcs

One of the clear advantages of Al MMCs compared to conventional metallic materials is greatly enhanced strength and stiffness. These property gains are achieved without impacting material density, so the specific properties of Al MMC are dramatically increased. Al MMCs are also isotropic composite materials. Their design space is not dependent on reinforcement orientation.
