DWA-USA, the global leader for Aluminum
Metal-Matrix-Composites for Lighter Weight Designs
VHP Billet
Contact a Technical Advisor

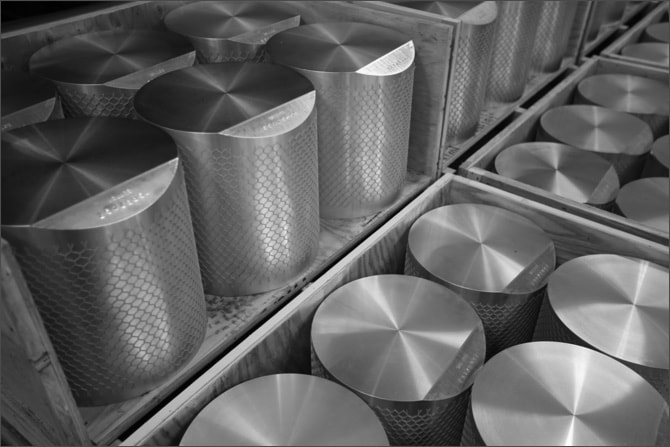

DWA-USA produces cylindrical Aluminum MMC billets with diameters from 100 to 508 mm (4 to 20 inches) and weights from 2 to over 400 kg (2 to over 880 lb). For many applications, Al MMCs can be used in the billet form.

  • 2000, 6000, and 7000 series aluminum matrix alloys
  • SiC ceramic particle loadings from 5-50 Vol%
  • Uniform dispersion of fine ceramic particles throughout the aluminum matrix
  • Isotropic mechanical and physical properties
al mmc vhp billet

Vacuum Hot Pressed (VHP) Billet Specifications

Units:
Eng
  D100 D228 D355 D430 D508
Diameter in 4.2 9 13.8 17 19.8
Height in 4 12 14.5 30 28
Weight lb 5.7 78 222 698 884

Note: Billet dimensions and weight are shown as nominals and based on a representative density of 0.1025 lb in3.

Si
  D100 D228 D355 D430 D508
Diameter mm 107 229 351 432 503
Height mm 102 305 368 762 711
Weight kg 2.6 35 101 317 401

Note: Billet dimensions and weight are shown as nominals and based on a representative density of 2.84 g/cm3.



Billets are the starting form for Aluminum MMC Extrusions, Forgings and Sheet & Plate products. DWA-USA can produce billets to customer specifications for material composition, diameter, height and weight.

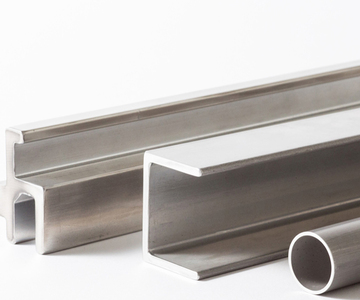

Extrusions

Extrusions

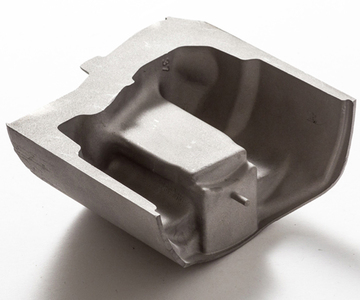

Forgings

Forgings

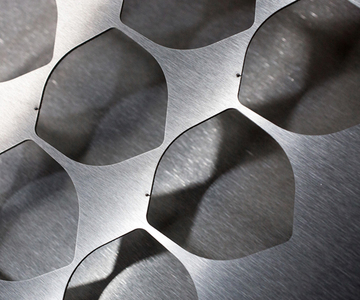

Sheet & Plate

Sheet & Plate
Case Studies

Fielded Applications

DWA-USA specializes in new aluminum-based powder metallurgy materials and applications development. We serve our customers throughout the entire development cycle, whether it be an upgrade to an existing design or starting from the ground up. Our track record for transitioning prototyping efforts to real world serial production is unparalleled.

View our Case Studies

Density Adjusted Properties of Aluminum MMCs Compared to Steel, Titanium and Aluminum

density-adjusted-properties-of-aluminum-mmcs

One of the clear advantages of Al MMCs compared to conventional metallic materials is greatly enhanced strength and stiffness. These property gains are achieved without impacting material density, so the specific properties of Al MMC are dramatically increased. Al MMCs are also isotropic composite materials. Their design space is not dependent on reinforcement orientation.

Primary Processing
Primary Processing
Secondary Processing
Secondary Processing
Finishing
Finishing
DWA Aluminum Composites

Aluminum Metal-Matrix-Composites Manufacturing

The Al MMC manufacturing process can be divided into three elements- primary processing, secondary processing and finishing. Unlike other composite materials, after primary processing of the billet, Al MMCs offer a high level of “fit, form and function” when inserted into the industrial manufacturing stream, making use of conventional facilities and equipment.
